Ductless Balance Enclosures P5-24-XT-RX-G

If You Are Looking For Further Information on Ductless Balance Enclosures reach Out to Holliday Fielding Hocking Ltd today

DUCTLESS BALANCE ENCLOSURE

P5-24-XT-RX-G - 24"W, 230VAC, 50Hz

Master the balance of safety and precision: Step into the future of lab work with ductless balance enclosures!

Holliday Fielding Hocking Ltd offer one of the widest range of ductless balance enclosures in the UK today, including the Ductless Balance Enclosure P5-24-XT-RX-G. We work with a vast selection of laboratories in the UK, from educational institutions to industry and life sciences, so whatever type or configuration of ductless balance enclosure you are searching for, we can help.  Reach out to one of our team today.

MODEL SPECIFICATION

P5-24-XT-RX-G - 24"W, 230VAC, 50Hz

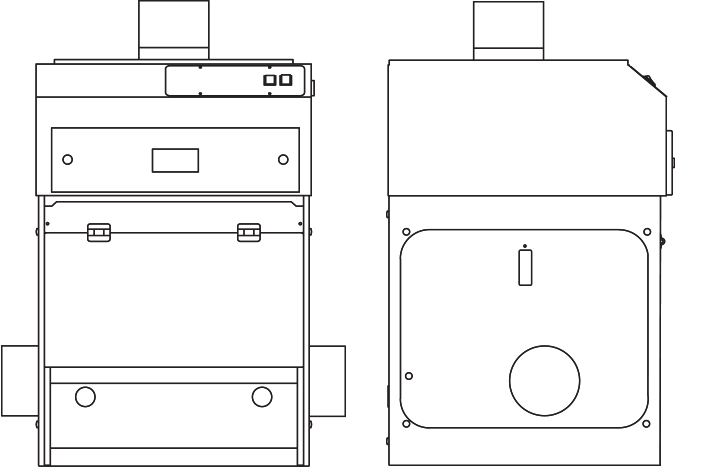

Ductless Balance Enclosure 24" Wide Line Drawing

ADDITIONAL INFORMATION

Dimensions & Weights

Internal Height: 23.6″  |  600 mm
External Width:
24″  |  610 mm
External Depth:
27″  |  676 mm
External Height:
35″  |  889 mm
Shipping Width:
40″  |  1016 mm
Shipping Depth:
40″  |  1016 mm
Net Weight:
72 lbs  |  33 kg
Shipping Weight:
150 lbs  |  68 kg

Construction

Cabinet Style: Standard
Construction:
Epoxy-coated Steel

Protection & Compliance

OSHA: OSHA Standard -29 CRF, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. This product may assist you with compliance or as part of your chemical hygiene plan. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental:
ISO 14001 : 2015; ENERGY STAR® Partner
Quality:
ISO 9001 : 2015

Options & Accessories

Autocal Control Panel*: AUTOCAL
Base Cabinet, Fixed (Metal):
CART-MCC-25
Base Cabinet, Fixed (Polypropylene):
CART-SSC-25
Base Stand, Mobile, with Casters:
CART-25
Dwyer Air Flow Meter:
DWYER
FSA Control Panel*:
FSA
FSA/Autocal Control Panel*:
ADV-P
Fire Safety Cabinet Base:
CART-FSC-25
Monitair Controller:
MON-P
SafeSwitch HEPA Filter Shutter System:
ASTS-030-SS
Spill Tray (Polypropylene):
TRAY-P5-24
Spill Tray (Stainless Steel):
TRAY-P5-24-SS
*
Factory installed; specify when ordering

Airflow & Filtration

Airflow: Vertical
Airflow Direction:
Upflow
Face Velocity:
100
Main Filter:
HEPA (ULPA optional)
Carbon Filter:
 (Optional) Activated Carbon
Biological Filter:
(Optional) HEPA (ULPA optional)

Warranty

Standard Warranty

Electrical

Electrical Voltage: 230V, 50Hz
NEMA Plug:
Specify UK, Euro or Other Plug

Controls & Monitoring

Control: Fan Manual On Off

Product Brochure & Drawings

Product Brochure: Click to Download

Product Drawing: Click to View

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice
