Vented Containment Enclosures

Vented Containment Enclosures are the ideal solution for containment of powders and fumes during compounding or weighing

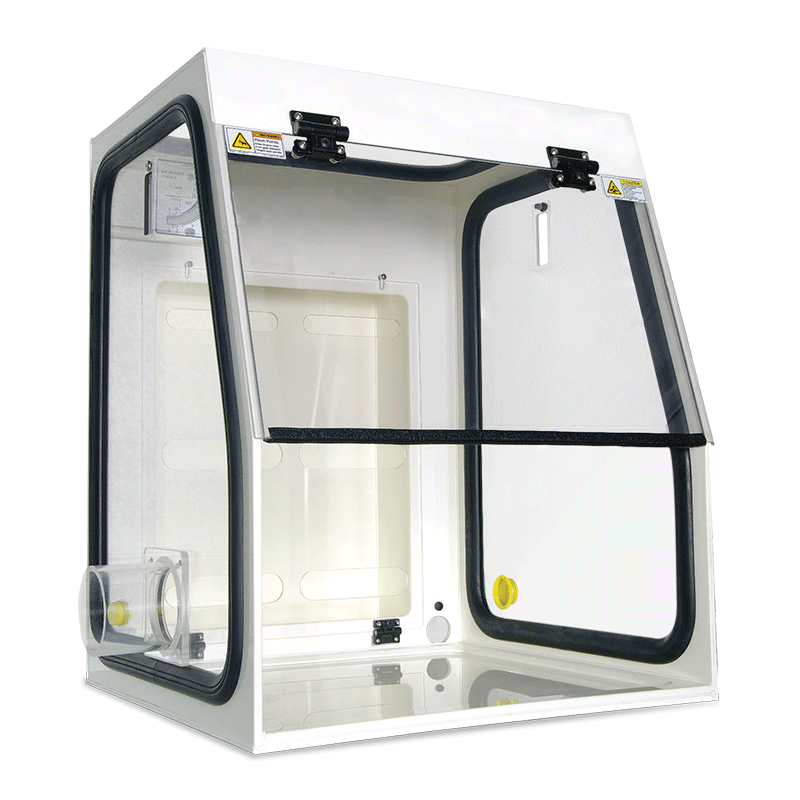

Vented Containment Enclosure Right Side View from HFH

Vented Containment Enclosures

Vented Containment Enclosures are the ideal solution for containment of powders and fumes during compounding or weighing.

Vented Enclosures offer important safety features that are not found with any other competitive product. They are available as standard height or tall models across five popular sizes and they are constructed from polypropylene and as such they are durable and chemically resistant.

The filter assembly is easy to access and easy to change, plus a unique filter clamping design eliminates bypass leakage outside the cabinet.

Multiplex filter configuration permits a customised combination of filter media for a broad range of chemical families and biological agents if required.

SALES

We offer one of the widest selections of new, used and quality refurbished local exhaust ventilated equipment available in the UK today.

INSTALLATION

Backed up with dedicated support and installation from our own highly trained and in-house technical support team that cover the whole of the UK.

SUPPORT

We can offer sector specific support, planning, commissioning and ongoing or ad-hoc scheduled maintenance for all sizes of laboratory.

VENTED CONTAINMENT ENCLOSURES

Our Most Popular Vented Containment Enclosures

HFH supply a range of ten Vented Containment Enclosures for all laboratory applications. HFH Vented Containment Enclosures are flexible by design, available in standard and tall models and utilise ductless technology to enable a use in a wide variety of settings.

Vented Containment Enclosures Features

  • Custom sizes to meet every need
  • Turbulent-free airflow pattern
  • Ductless design increases location possibilities
  • Easy to change filtration system
  • Specialised HEPA filter technology for increased safety

Vented Containment Enclosures Features

  • Our HEPA filters are fitted with a “bag-out” system to completely protect operators during filter changes
  • An analog air velocity meter in the field of vision of the user provides independent backup to the electronic filter blockage alarm
  • Each unit is provided with an 8 ft. PVC heavy-walled flex hose with smooth inner surfaces to minimize pressure drop and friction loss
  • Clear side panels with optional waste chute allow for disposal bags to be connected and prevent contamination to the surrounding lab
THE BENEFITS OF VENTED CONTAINMENT ENCLOSURES

Vented Containment Enclosures

Environmental Benefits

HFH Ductless Vented Containment Enclosures provide effective containment of airborne particulates during manipulation and transfer of potent compounds

Versatility

The cabinet frame and work surfaces, comprised of industrial components, are durable and chemically resistant. Our ventless enclosures can be plumbed into an existing HVAC setup or incorporated with our Fume Extractor to minimize upfront workstation construction costs

Ease of Install

The ductless containment enclosure is self-contained and does not require venting to the outside. Many units are portable and may be moved with minimal downtime and without filter changes. Set-up, operation, and filter maintenance are straightforward

Energy Efficiency

Because filtered air is returned to the room, no demands are required of the facility HVAC capacity for make-up air.

Cost Effectiveness

Facility ductwork, HVAC, and construction costs are eliminated by utilising a ductless design

Safe to Use

Cabinet airflow and face velocity protect users from incidental exposures to fumes. The optional SafeSwitch HEPA Filter Shutter System is available for safer filter exchange



Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice

TECHNICAL INFORMATION

Vented Containment Enclosures

  • EXTERNAL DIMENSIONS

  • INTERNAL DIMENSIONS

  • FILTER OPTIONS

  • APPLICATIONS

Vented Containment Enclosures For Powder Weighing

Model

Width

Depth

Height

More Info

VE-FES-G

17.5" | 445 mm

25.5" | 648 mm

18" | 457 mm

VE-FED-G

35" | 889 mm

25.5" | 648 mm

18" | 457 mm

VE24S-G

24" | 610 mm

28" | 711 mm

19.5" | 495 mm

VE34S-G

34" | 864 mm

28" | 711 mm

19.5" | 495 mm

VE48S-G

48" | 1219 mm

28" | 711 mm

19.5" | 495 mm

VE60S-G

60" | 1524 mm

28" | 711 mm

19.5" | 495 mm

VE24T-G

24" | 610 mm

28" | 711 mm

30" | 762 mm

VE34T-G

34" | 864 mm

28" | 711 mm

30" | 762 mm

VE48T-G

48" | 1219 mm

28" | 711 mm

30" | 762 mm

VE60T-G

60" | 1524 mm

28" | 711 mm

30" | 762 mm

the next step

Request Your Vented Containment Enclosures Quotation Today


FOR PRODUCT HELP PLEASE CALL: 0113 245 4111

>
