Vented Containment Enclosure VE60S-G

If You Are Looking For Further Information on Vented Containment Enclosures reach Out to Holliday Fielding Hocking Ltd today

VENTED CONTAINMENT ENCLOSURE

VE60S-G - 60"W, 230VAC, 50Hz

Holliday Fielding Hocking Ltd offer a select range of vented containment enclosures, including the standard height VE60S-G 60" Wide vented containment enclosure. We work with a vast selection of laboratories in the UK, from educational institutions to industry and life sciences, so if you are searching for a vented enclosure, we can help. Reach out to one of our team today.

MODEL SPECIFICATION

VE60S-G - 60"W, 230VAC, 50Hz

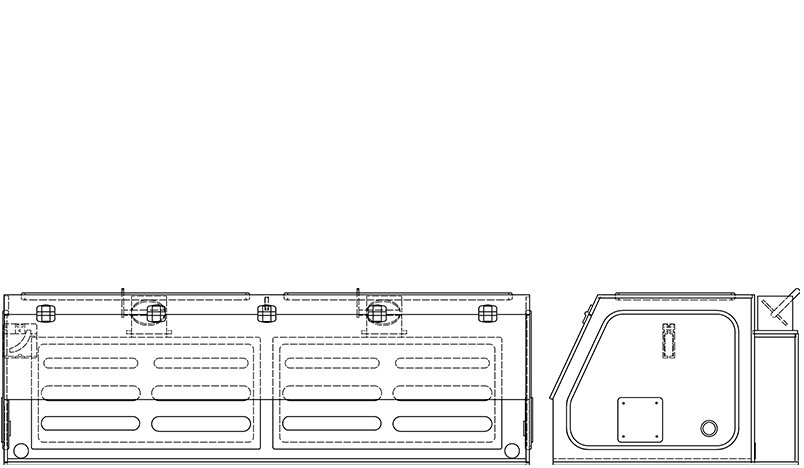

Vented Containment Enclosure VE60S 60" Width Line Drawing

ADDITIONAL INFORMATION

Dimensions & Weights

Internal Height: 17″  |  432 mm
External Width:
60″  |  1524 mm
External Depth:
28″  |  711 mm
External Height:
19.5″  |  495 mm
Shipping Width:
72″  |  1829 mm
Shipping Depth:
40″  |  1016 mm
Net Weight:
100 lbs  |  45 kg
Shipping Weight:
180 lbs  |  82 kg

Construction

Cabinet Style: Standard
Construction:
Polypropylene

Protection & Compliance

OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental:
ISO 14001: 2015 ; ENERGY STAR® Partner
Quality:
ISO 9001 : 2015

Options & Accessories

Base Cabinet, Fixed (Metal): CART-MCC-60
Base Cabinet, Fixed (Polypropylene):
CART-SSC-60
Base Stand, Mobile, with Casters:
CART-60
Fire Safety Cabinet Base:
CART-FSC-60
Spill Tray (Epoxy Resin):
TRAY-VE60-RESIN
Trash Chutes:
TRASH
*
Factory installed; specify when ordering

Airflow & Filtration

Airflow: Horizontal
Airflow Direction:
Upflow
Face Velocity:
100

Warranty

Standard Warranty

Electrical

Electrical Voltage: 230V, 50Hz

Controls & Monitoring


Product Brochure & Drawings

Product Brochure: Click to Download

Product Drawing: Click to View

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice
