Horizontal Laminar Flow Cabinet HLF-36XT-G

If You Are Looking For Further Information on Horizontal Laminar Flow Cabinets reach Out to Holliday Fielding Hocking Ltd today

HORIZONTAL laminar flow cabinet

HLF-36XT-G - 36"W, Extra Tall Legs, 230VAC, 50Hz

Holliday Fielding Hocking Ltd offer one of the widest range of laminar flow cabinets in the UK today, including the Horizontal Laminar Flow Cabinet HLF-36XT-G. We work with a vast selection of laboratories in the UK, from educational institutions to industry and life sciences, so whatever type or configuration of laminar flow cabinet you are searching for, we can help.  Reach out to one of our team today.

MODEL SPECIFICATION

HLF-36XT-G - 36"W, Extra Tall Legs, 230VAC, 50Hz

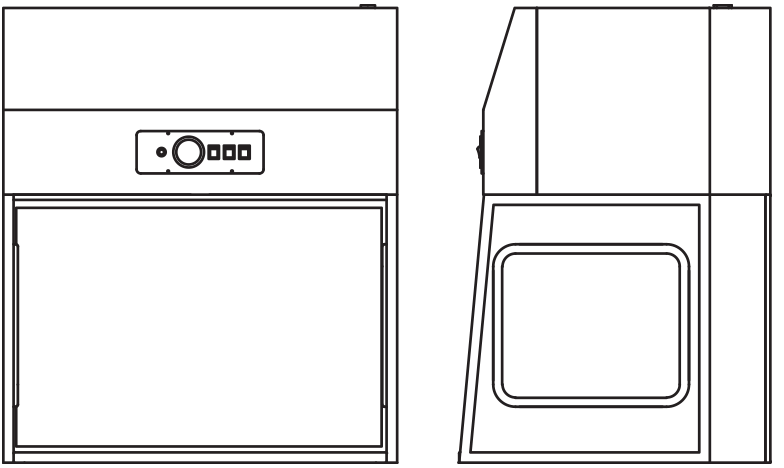

Horizontal Laminar Flow Cabinet 36XT-G Line Drawing

ADDITIONAL INFORMATION

Dimensions & Weights

Internal Height: 29.5″  |  749 mm
External Width:
37.25″  |  946 mm
External Depth:
29.5″  |  749 mm
External Height:
48.75″  |  1238 mm
Shipping Width:
45″  |  1143 mm
Shipping Depth:
44″  |  1118 mm
Net Weight:
266 lbs  |  121 kg
Shipping Weight:
391 lbs  |  175 kg

Construction

Cabinet Style: Extra Tall Legs
Construction: Epoxy-coated Steel

Protection & Compliance

OSHA: OSHA Standard -29 CFR, Safety and Health Regulations for General Industry, 1910.1450: Occupational exposure to hazardous chemicals in laboratories. Part B, definition, laboratory type hood. Please consult your Safety Officer and/or Industrial Hygienist.
Environmental:
ISO 14001: 2015 ; ENERGY STAR® Partner
Quality:
ISO 9001 : 2015

Options & Accessories

Base Stand, Mobile, Motorized: CART-HLF-BM-36
Base Stand, Mobile, with Casters:
CART-HLF-BW-36
Base Stand, Mobile, with Leveling Feet:
CART-HLF-BL-36
IV Bar and "S" Hooks:
IV-HLF-36
Ionization Bar:
ION-36
Removable Front Cover:
FCOVER-HLF-36XT
Service Fixtures:
SF-WALL
Static Dissipative Work Surface:
TRAY-HLF-36-SDW
UV lamp with Night Door/Cover*:
UV-36XT
*
Factory installed; specify when ordering

Airflow & Filtration

Airflow: Horizontal

Warranty

Standard Warranty

Electrical

Electrical Voltage: 230V, 50Hz
NEMA Plug:
Specify UK, Euro or Other Plug

Controls & Monitoring


Product Brochure & Drawings

Product Brochure: Click to Download

Product Drawing: Click to View

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice
