Compact Laminar Flow Cabinet 24-G

If You Are Looking For Further Information on Compact Laminar Flow Cabinets reach Out to Holliday Fielding Hocking Ltd today

laminar flow cabinet COMPACT

FLOW-24-G - 24"W, 230VAC, 50Hz

Step into a world of immaculate precision and uncompromised safety with Holliday Fielding Hocking's collection of Compact Laminar Flow Hoods

Holliday Fielding Hocking Ltd offer one of the widest range of laminar flow cabinets in the UK today, including the Compact Laminar Flow Cabinet 24-G. We work with a vast selection of laboratories in the UK, from educational institutions to industry and life sciences, so whatever type or configuration of laminar flow cabinet you are searching for, we can help.  Reach out to one of our team today.

MODEL SPECIFICATION

FLOW-24-G - 24"W, 230VAC, 50Hz

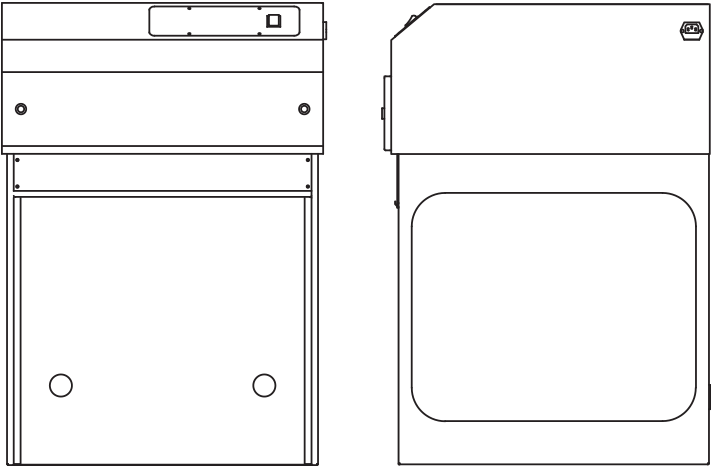

HFH-FLOW-24-G Laminar Flow Cabinet Line Drawing

ADDITIONAL INFORMATION

Dimensions & Weights

Internal Height: 23.5″  |  596 mm
External Width:
 24″  |  610 mm
External Depth:
24″  |  610 mm
External Height:
35″  |  889 mm
Shipping Width:
40″  |  1016 mm
Shipping Depth:
40″  |  1016 mm
Net Weight:
 72 lbs  |  33 kg
Shipping Weight:
150 lbs  |  68 kg

Construction

Epoxy-coated Steel

Protection & Compliance

Environmental: ISO 14001 : 2015; ENERGY STAR® Partner
Quality:
ISO 9001 : 2015

Options & Accessories

Base Cabinet, Fixed (Metal): CART-MCC-25
Base Cabinet, Fixed (Polypropylene):
CART-SSC-25
Base Stand, Mobile, with Casters:
CART-25
Fire Safety Cabinet Base:
CART-FSC-25
Polypropylene Construction*:
FLOW-24-PP
Spill Tray (Polypropylene):
TRAY-P5-24S
Spill Tray (Stainless Steel):
TRAY-P5-24S-SS
ULPA Filter:
ASTS-030U
*
Factory installed; specify when ordering

Airflow & Filtration

Airflow: Vertical
Airflow Direction:
Downflow
Face Velocity:
90

Warranty

Standard Warranty

Electrical

Electrical Voltage: 230V, 50Hz

Controls & Monitoring

Control: Fan Manual On Off

Product Brochure & Drawings

Product Brochure: Click to Download

Product Drawing: Click to View

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice
