PCR Laminar Flow Cabinets

PCR Laminar Flow Cabinets from HFH offers protection by laminar flow for PCR amplification handlings that are extremely sensitive to contamination

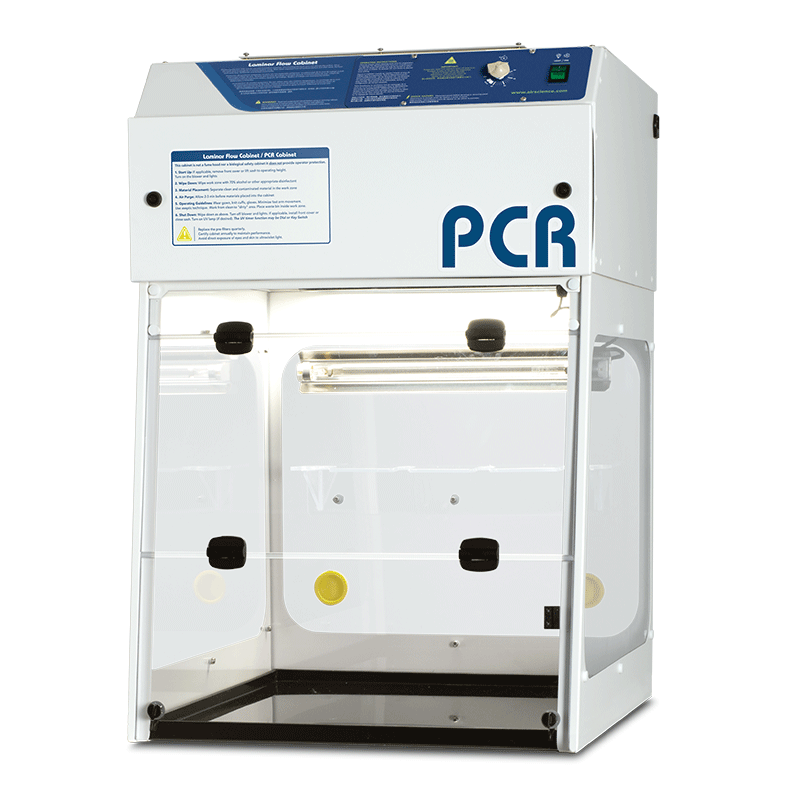

PCR Laminar Flow Cabinet 24" Width from HFH

PCR Laminar Flow Cabinets

Our PCR laminar flow cabinets employs HEPA Filtration technology to create a safe, energy-efficient, contaminant-free environment. They are ideally suited for use when flexible access to instrumentation inside the cabinet is required.

Polymerase chain reaction* (PCR) is a simple and inexpensive technique to make multiple copies of a targeted nucleotide sequence from a DNA sample and to amplify sequences from small samples.

This technique is widely used in genetics laboratories that work with DNA and RNA. Because PCR amplification is extremely sensitive to contamination, prevention of contamination requires good laboratory practices to minimize external or cross-contamination during reagent preparation, sample preparation and sample amplification.

SALES

We offer one of the widest selections of new, used and quality refurbished local exhaust ventilated equipment available in the UK today.

INSTALLATION

Backed up with dedicated support and installation from our own highly trained and in-house technical support team that cover the whole of the UK.

SUPPORT

We can offer sector specific support, planning, commissioning and ongoing or ad-hoc scheduled maintenance for all sizes of laboratory.

PCR laminar flow cabinets

Our Most Popular PCR Laminar Flow Cabinets

HFH supply a range of PCR Laminar Flow Cabinet in 3 different widths from 28" to 48" wide and their air cleanliness meets and exceeds ISO Class 5.

PCR Laminar Flow Cabinets Features

  • Provides sterile work zone for aseptic techniques
  • Air cleanliness meets and exceeds ISO Class 5
  • Energy saving LED lighting
  • Vertical laminar airflow with HEPA filtration
  • Equipped with germicidal UV lamp to create light emission conditions known to provide safe decontamination

PCR Laminar Flow Cabinets Features

  • 360 degree visibility with UV absorbing polycarbonate construction
  • Purair PCR cabinets are available in three model sizes with various options
  • Designed for desktop use or installation on an optional base stand or mobile cart
  • 360 degree visibility with UV absorbing polycarbonate construction
THE BENEFITS OF LAMINAR FLOW TECHNOLOGY

PCR Laminar Flow Cabinets

Environmental Benefits

An average airflow velocity of 0.30 m/s (60 fpm) ensures that there is sufficient number of air changes within the work zone to eliminate cross-contamination and to maintain optimum cleanliness. PCR Laminar Flow Cabinets uses long-life HEPA filters without aluminum separators to increase filter efficiency, minimize the potential for leakage and increase

Versatility

Laminar Flow cabinets are available in vertical and horizontal configurations with various sizes and options for a total of 36 models to choose from in 6 different widths. Select from standard powder coated interior or stainless steel interior (-SS models)

Ease of Install

The HEPA filters are easy to replace; no tools required

Energy Efficiency

The single EC blower motor assures lower cost of ownership in one of the world's most energy efficient laminar flow cabinets. Energy saving LED lighting is used in PCR Laminar Flow Cabinets.

Cost Effectiveness

PCR work stations use an energy-efficient centrifugal blowers for long life and dependable performance. HFH PCR Laminar Flow Cabinets uses long-life HEPA filters without aluminum separators to increase filter efficiency, minimize the potential for leakage and increase filter life.

Safe to Use

Built-in ultraviolet lamp with timer creates light emission conditions known to permit safe decontamination between PCR cycles. Includes a double-flap safety cover of 0.2" (5 mm) UV absorbing 254 nm beta radiation resistant polycarbonate; provides superior operator protection while allowing easy access to the work zone.



Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice

TECHNICAL INFORMATION

PCR Laminar Flow Cabinets

  • EXTERNAL DIMENSIONS

  • INTERNAL DIMENSIONS

  • APPLICATIONS

PCR Laminar Flow Cabinet

Model

Width

Depth

Height

More Info

PCR-24-G

24" | 610 mm

27" | 686 mm

35" | 889 mm

PCR-36-G

36" | 914 mm

27" | 686 mm

35" | 889 mm

PCR-48-G

48" | 1219 mm

27" | 673 mm

35" | 889 mm

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice

THE NEXT STEP

Request Your PCR Laminar Flow Cabinet Quotation Today


>
