PCR Laminar Flow Cabinet PCR-36-G

If You Are Looking For Further Information on PCR Laminar Flow Cabinets reach Out to Holliday Fielding Hocking Ltd today

PCR laminar flow cabinet

PCR-36-G - 36"W, 230VAC, 50Hz

Holliday Fielding Hocking Ltd offer one of the widest range of laminar flow cabinets in the UK today, including the PCR Laminar Flow Cabinet PCR-36-G. We work with a vast selection of laboratories in the UK, from educational institutions to industry and life sciences, so whatever type or configuration of laminar flow cabinet you are searching for, we can help.  Reach out to one of our team today.

MODEL SPECIFICATION

PCR-36-G - 36"W, 230VAC, 50Hz

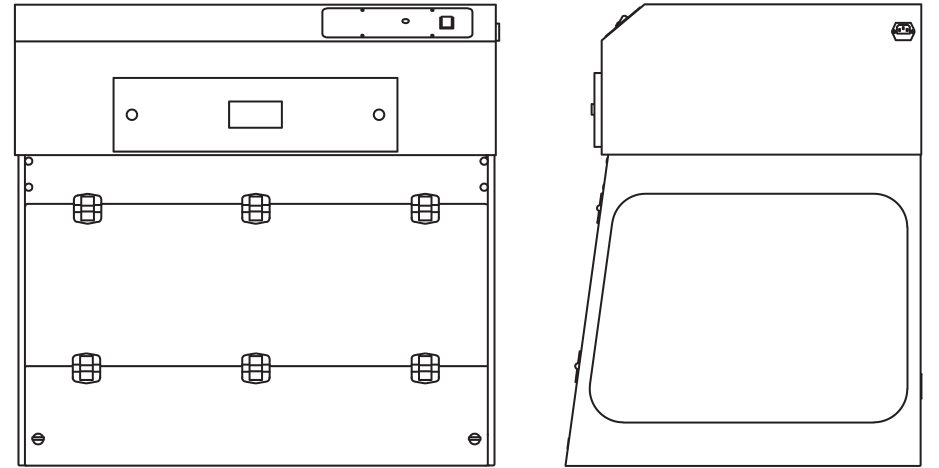

PCR Laminar Flow Cabinet 36" Width Line Drawing

ADDITIONAL INFORMATION

Dimensions & Weights

Internal Height: 24″  |  610 mm
External Width:
 36″  |  914 mm
External Depth:
27″  |  686 mm
External Height:
35″  |  889 mm
Shipping Width:
48″  |  1219 mm
Shipping Depth:
40″  |  1016 mm
Net Weight:
99 lbs  |  45 kg
Shipping Weight:
175 lbs  |  79 kg

Construction

Cabinet Style: Desktop
Construction:
Epoxy-coated Steel

Protection & Compliance

Environmental: ISO 14001 : 2015; ENERGY STAR® Partner
Quality:
ISO 9001 : 2015

Options & Accessories

Base Cabinet, Fixed (Metal): CART-MCC-36
Base Cabinet, Fixed (Polypropylene):
CART-SSC-36
Base Stand, Mobile, with Casters:
CART-36
Fire Safety Cabinet Base:
CART-FSC-36
Monitair Controller*:
MON-P
Polypropylene Construction*:
PCR-36-PP
Spill Tray (Polypropylene):
TRAY-P5-36
Spill Tray (Stainless Steel):
TRAY-P5-36-SS
ULPA Filter:
ASVLFP536-030U
*
Factory installed; specify when ordering

Airflow & Filtration

Airflow: Vertical
Airflow Direction:
 Downflow
Face Velocity:
100
Main Filter:
HEPA efficiency, 99.99% at 0.3um

Warranty

Standard Warranty

Electrical

Electrical Voltage: 230V, 50Hz

Controls & Monitoring

Control: Manual On/Off

Product Brochure & Drawings

Product Brochure: Click to Download

Product Drawing: Click to View

Images on this page are for illustration purposes only and may not represent the actual product. Specifications subject to change without notice
